23W UVC Ozone Lamp UV Light Tubes Length 436mm Diameter 15mm

Product Categories

Ningbo Uv Light & Electricity Co., Ltd.

Contact Now

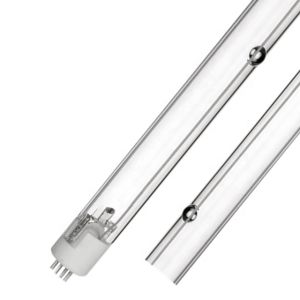

23W UVC Ozone Lamp UV Light Tubes Length 436mm Diameter 15mm

Name: 23W UVC Ozone Lamp UV Light Tubes Length 436mm Diameter 15mm
Brand: UV, Yoway
Price: 6 USD

Wholesale 23W UVC Ozone Lamp UV Light Tubes Length 436mm Diameter 15mm from china suppliers

Brand Name : UV, Yoway

Model Number : ZW23D15Y-Z436

Certification : CE,ROSH

Place of Origin : Zhejiang, China

MOQ : 10 pcs

Price : $6-$45/SET

Payment Terms : T/T

Supply Ability : 5000pcs per month

Delivery Time : 5-8 days

Packaging Details : paper box packing

watt : 23w

Lamp Voltage : 61.2

Life Span : 8000 Hours

Length : 436mm

Diameter : 15±0.3mm

Model : ZW23D15Y-Z436

Ballast : YW-HCS-102A

Current : 240

Color : Clean

254Irradiation Intensit : 35

Contact Now

23W UVC Ozone Lamp 15mm Diameter Generator UVC Disinfection Light 254nm
SINGLE ENDED FOUR PINS SUPER POWER
23W UVC LAMPS
UVC Ozone Lamp 23W Ultraviolet Germicidal Light 15mm Diameter Generator Uvc Disinfection Light 254nm Uv Germicidal Lamp
Detailed Images
 WIDELY APPLICATION AND PURIFYING AIR: Ultraviolet disinfection has a wide range of applications, such as hospitals, schools,nurseries, cinemas, buses, offices, homes,HVAC pipes etc., Kill mold, mites, produces negative air ion purifying air, air is fresh after sterilization. In public places, ultraviolet disinfection can prevent bacterial from spreading through the air water and the surface of objects. Notice: Rated voltage is 100V-240V, work in 240V, or it will be damaged.
1.Top quality quartz tube 2.>93% ultraviolet light transmittance 3. High temperature resistance 4. Corrosion resistance 4. Patented anti-fouling technology for the outer coating film of the lamp or quartz sleeve to ensure that the surface of the lamp
 is not affected by external environmental pollution.
1.High quality adapter 2.Completely connection
3.Stable and reliable
4.High effeciency
1.Unique inner coating and outer coating technology 2. The internal coating technology ensures that the maximum illuminance attenuation of the ultraviolet lamp during the life of the tube does not exceed 15% Uniform and dense demoulding 2. After 600 degrees high temperature baking, it still maintains continuous density 3. Three layers of protection

How does UV light affect bacteria?
Microorganisms are simple organic structures that can easily absorb UV-C wavelengths, causing
 photodissociation (destruction). Microbial DNA (deoxyribonucleic acid) is first adversely affected due to its weaker molecular
 bonds. Within a hundredth of a second, it suffered irreparable damage. The subsequent loss of genetic instructions can cause the
 cell to die and/or fail to replicate, making it harmless. Continuous exposure will cause uninterrupted degradation, such as the
 sun, which will only be significantly faster.

Product Presentation
Application:
 1.Used in various household appliances such as disinfection cabinets,microwave ovens,air conditioners,air purifiers,etc. 2.Disinfection and sterilization of air and surface of objects in hospitals,schools,hotels,restaurants,homes and offices.

Product Name
 			UVC Germicidal lamp


Material
 			Quartz tube


Power
 			23w


Voltage
 			110/220v


Type of Lamp-house
 			T5G5


Model
 			ZW23D15Y-Z436


Style
 			Straight


  	 		 		 		 		 	 	 			ITEM NO./规格型号 			PRODUCT PICTURE/产品图片 			Dia/管径(mm)

 			4W 			ZW4D15Y(W)-Z135 			  			∅15
 			5W 			ZW5D15Y(W)-Z150 			  			∅15
 			10W 			ZW10D15Y(W)-Z212 			  			∅15
 			14W 			ZW14D15Y(W)-Z287 			  			∅15
 			15W 			ZW15D15Y(W)-Z303 			  			∅15
 			17W 			ZW17D15Y(W)-Z356 			  			∅15
 			23W 			ZW23D15Y(W)-Z463 			  			∅15
 			28W 			ZW28D15Y(W)-Z550 			  			∅15
 			37W 			ZW37D15Y(W)-Z793 			  			∅15
 			40W 			ZW40D15Y(W)-Z851 			  			∅15
 			55W 			ZW55D15Y(W)-Z1149 			  			∅15
 			65W 			ZW65D15Y(W)-Z1554 			  			∅15
 			75W 			ZW75D15Y(W)-Z1554 			  			∅15

Lamp adaptersThere are four : Plastic , Ceramic, Aluminium (blue and silver) lamp adapters for your choice

Certificate
FAQ
    Question:What kind of payment your company accept?
 Answer:T/T,L/C,West Union,Paypal etc.

 Question:How do you guarantee system,
 thorough check products before packing.

 Question:Can you send uv lamp samples for testing?
 Answer:Yes.We can provide free uv lamp samples for testing

Product Tags:

23W UV Light Tubes 436mm

23W UVC Ozone Lamp 436mm

UVC Ozone Lamp Diameter 15mm
